D.9.3. Feature "Legal entity - Update": How to update (edit) a Legal entity

Once a Legal entity has been created or imported (see chapter D.9.2 Feature Legal entity: how to create a Legal entity), it can be updated or edited from the (link) Task Panel.

D.9.3.1. Opening a Legal entity

To open a Legal entity, follow these steps:

  1. Go Home to the Task Panel if you are not already there.

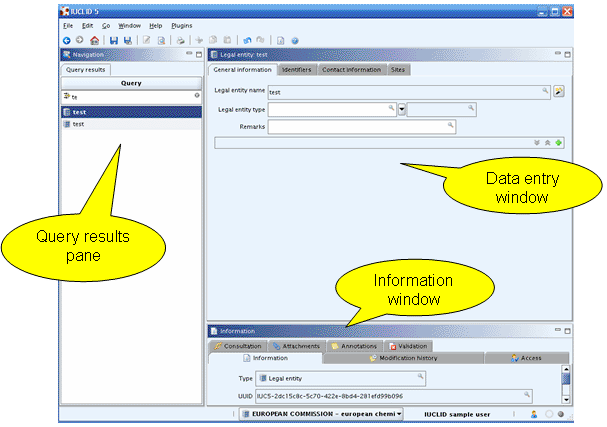

  2. Under Legal entity , click Update. A screen comes up with empty windows on the right side and a Query results pane on the left (below the title bar Navigation) showing all Legal entities (both official and non official) in your IUCLID installation or the network you are connected to. The Legal entities are listed in alphabetical order. Legal entities of "Active trade partners" are shown in bold (see chapter screenshot below).

  3. If you can easily find the desired Legal entity, just double-click it (left mouse button) to open it.

  4. In the case of a large number of Legal entities listed, run a query as described in chapter D.9.3.2 Querying for a Legal entity in the Query results

    Note

    If the list of Legal Entities does not appear, check the query limit set in the User preference menu (see chapter D.16.5.3 Tab "Query limit": Setting query limits). If the User preference menu cannot be displayed, contact the local IUCLID administrator.

    Tip

    From each entry in the query results list a context menu can be opened (right mouse click) as shown in the screenshot above. The context menu offers the following commands:

    • Open for opening the Legal entity (as an alternative method to double-click).

    • Print for printing the Legal entity.

    • Export for exporting the Legal entity.

    • Active trade partner for switching the status of the Legal entity e.g. from active to inactive .

    • Delete for deleting the Legal entity.

D.9.3.2. Querying for a Legal entity in the Query results pane

In the Query results pane, you can run a query as follows:

  1. Click into the Find / Filter pane below the Query title bar.

  2. Enter the Legal entity name or part of the name for the desired Legal entity. For example "leg" will filter out all Legal entities containing this search string. The more unequivocal the entered text is, the better the search for the desired Legal entity can be narrowed down.

    Tip

    Do not use * as a wildcard for truncated queries. Just enter any string (even part of the name). Queries are not case-sensitive. For detailed instruction on how to conduct queries in IUCLID, see chapter D.15 Query and search

  3. Once you have found the desired Legal entity, double-click to open it. The user interface changes as the Legal entity section is displayed in the Data entry window together the Information pane.

D.9.3.3. User interface of Legal entity section: structure and elements

When a Legal entity has been opened, the data entry window appears. The user interface appearing now is split into the following parts:

D.9.3.3.1. Data entry window

The data entry window displayed after creating or opening a Legal entity consists of the following elements:

  • Title bar indicating the name of the Legal entity.

  • Data entry screen consisting of data entry fields grouped under four tabs: General information, Identifiers, Contact information and Sites.

Most data entry fields are self-explanatory, based on their labels and values in drop-down lists.

For more detailed guidance, see the following sub-chapters.

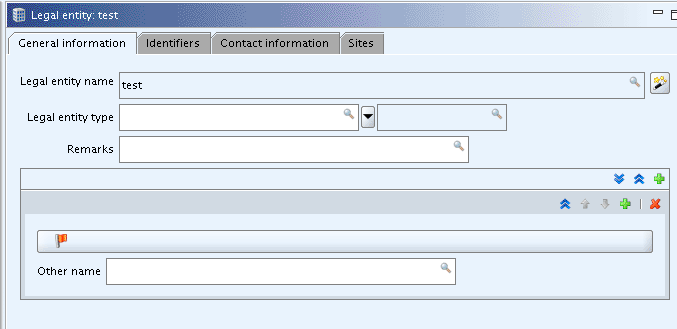

D.9.3.3.1.1. Tab "General information"

Legal entity name: The Legal entity name displayed in this field is the one previously entered, and is read-only. Nevertheless, it can be modified, by clicking the Wizard button : a dialogue appears to assist you in performing the required steps.

Caution

Any change on the Legal entity name will have an impact on all associated data (e.g. Substance, Mixture, Category, Template datasets or Legal entity sites).

Note

If a name that already exists in the database is entered, a warning window comes up to ask for your confirmation. It is possible to proceed nevertheless, but it is strongly recommended not to enter identical Legal entity names in the IUCLID database.

Legal entity type: Select the type of Company/organisation from the drop-down list. If none of the pre-defined items applies, select other:. A text field is then activated next to the list field in which you can enter any free text. Picklist options: || company || consultant || regulatory authority || test house || third party|| university || other:

Remarks: Enter any remarks related to the Legal entity definition.

Repeatable block section:

List any additional name(s) the Legal entity may have in this repeatable block section. The Add button causes a new repeatable block to appear in which the name may be entered.

Add a new block for each name the Legal entity may have, by clicking the Add button .

If desired, the confidentiality flags may be set (see chapter D.4.5.7 Flags used for filtering data).

Other name: Enter any additional name for the Legal entity.

D.9.3.3.1.2. Tab "Identifiers"

This tab is split into three different tables. Enter any information which may help to provide a unique identification for a Legal entity.

Note

These tables are formed of repeatable blocks of fields displayed in table-view format. Click the Insert row button to enter a new identifier.

Table D.1. Legal entity identifier(s)

Flag Set the confidentiality/regulatory purpose information.
Identifier type:Select one identifier type from the drop-down list. . If none of the pre-defined items applies, select other:. A text field is then activated next to the list field in which you can enter any free text. Picklist options: || DUNS || VAT || other: ||
ID Insert the unique identification code (e.g. the DUNS number).
Remarks If necessary, provide any additional comments here.

Table D.2. Regulatory programme identifier(s)

Flag Set the confidentiality/regulatory purpose information.
Regulatory programme:Select one regulatory programme from the drop-down list. . If none of the pre-defined items applies, select other:. A text field is then activated next to the list field in which you can enter any free text. Picklist options: || OECD || EU REACH || US EPA || EU Biocides || other: ||
ID Enter the unique identification number distributed by the regulatory programme (e.g. the REACH registration number).
Remarks If necessary, provide any additional comments here.

Table D.3. Other IT system identifier(s)

Flag Set the confidentiality/regulatory purpose information.
It System Enter the IT system name (e.g. IUCLID 4).
ID Enter the identification number provided by the IT system (e.g. IUCLID 4 pin number).
Remarks If necessary, provide any additional comments here.

D.9.3.3.1.3. Tab "Contact information"

The Contact information tab is similar to an address book. It consists of two different addresses:

  • That of the Legal entity and

  • The contact information of the Legal entity's contact person(s).

    Note

    IUCLID offers the possibility to enter contact information at different levels. In case of official Legal entities, the contact information in this section should correspond to the one provided at the IUCLID web site and should be valid for all data/datasets associated to the Legal entity. It is however possible to enter more specific contact information related to each substance or mixture owned by the Legal entity in the Substance or Mixture dataset itself.

Contact address

Address Flags: Set the confidentiality/regulatory purpose information for the address.

Address: Enter the address of the Legal entity (e.g. Umkomaas Road 28).

Address: Use this second address line, if necessary.

Postal code : Enter the postal code (e.g. 01234).

Town: Enter the town.

Region/State: Enter the Region/State of the Legal entity.

Country: Select the country in which the Legal entity is located from the drop-down list. If none of the pre-defined items applies, select other:. A text field is then activated next to the list field in which you can enter any free text.

Phone: Enter the phone number of the Legal entity (e.g. +39 123 456789).

Fax: Enter the fax number of the Legal entity (e.g. +39 123 456789).

E-mail: Enter a valid e-mail address for the Legal entity (e.g. Le.name@legalentity.eu).

Web site: Enter the Legal entity web site address (e.g. www.legalentity.eu).

Contact persons: repeatable block

Person Flags: Set the confidentiality/regulatory purpose information for each contact person.

Organisation: Enter the Legal entity name - this is useful in situations in which the Legal entity contact person actually works for a different company (service provider, mother company, subsidiary etc.).

Department: Enter the department in which the contact person works (e.g. Scientific Department).

Title: Enter the title of the contact person (e.g. Mr.).

First name: Enter the first name of the contact person (e.g. Henri).

Last name: Enter the last name of the contact person (e.g. Smith).

Phone: Enter the phone number of the contact person (e.g. +39 123 456789).

Mobile: Enter the mobile phone number of the contact person.

Fax: Enter the fax number of the contact person (e.g. +39 123 456789), if available.

E-mail: Enter a valid e-mail for the contact person (e.g. henri.smith@legalentity.it).

Address: Enter the address of the Legal entity Address. Use this second address line, if necessary.

Postal code: Enter the postal code (e.g. 01234).

Town: Enter the Town.

Region/State: Enter the Region/State.

Country: Select the country in which the Legal entity is located from the drop-down list. If none of the pre-defined items applies, select other:. A text field is then activated next to the list field in which you can enter any free text.

Remarks: If necessary, provide any additional comments here.

D.9.3.3.1.4. Tab "Sites"

The Sites tab lists all Legal entity sites that are assigned to the Legal entity. The information is read-only. Select a site (left click mouse) and click the Goto button to display and update all available information for this Legal entity site.

Note

The Site information is created and updated by clicking the New or Update under Legal entity site in the Task Panel.
