The system can retrieve:
either all Mixture datasets by using the Get all query, or
selected Mixture datasets by using the Find Mixture and the Find Mixture by subject queries.
To retrieve all Mixture datasets:
Go Home to the Task panel if you are not already there.
Under Mixture , click Update. Click the Query button; a query window opens.
Select Mixture from the
Select query result type
drop-down list.
Select Get all mixtures from the
Select query
drop-down list.
Click the Search button. All Reference substance will be displayed in the Query result pane (under the title bar Navigation) in alphabetical order.
To search for one or more Mixture dataset(s) present in your IUCLID installation:
Go Home to the Task panel if you are not already there.
Under Mixture click Update. Click the Query button; a query window opens.
Select Mixture from the
Select query result type
drop-down list.
Select Find mixtures from the
Select query
drop-down list.

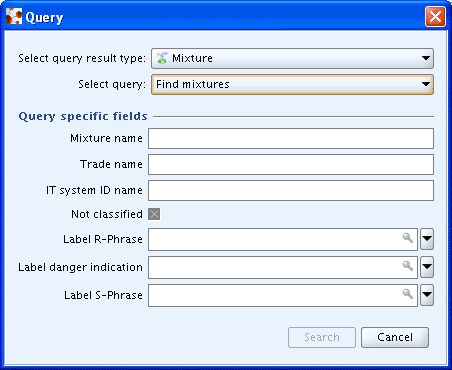

Enter at least one search criteria into one of the fields listed in the Query specific fields area (see the screenshot below).
Click the Search button, and the results of your query will be displayed in the Query result pane (under the title bar Navigation), otherwise the following message appears:
Specify a more general query to get the expected result, or select another query (for more information, see the following subchapters).
A Mixture dataset can be queried via several predefined queries:
by Additive (see chapter D.15.7.1 Find Mixture by Additive).
by Constituent (see chapter D.15.7.2 Find Mixture by Constituent).
by Impurity (see chapter D.15.7.3 Find Mixture by Impurity).
by related Substance (see chapter D.15.7.4 Find Mixture by Related substance).
To retrieve Mixture datasets based on their additive(s):
Go Home to the Task panel if you are not already there.
Under Mixture , click Update. Click the Query button; a query window opens.
Select Mixture from the
Select query result type
drop-down list.
Select Find mixtures by additive
from the Select query
drop-down list.
Enter at least one search criteria into one of the fields listed in the Query specific fields area (see the screenshot below).
To retrieve Mixture datasets based on constituent(s), you should:
Go Home to the Task panel if you are not already there.
Under Mixture , click Update. Click the Query button; a query window opens.
Select Mixture from the
Select query result type
drop-down list.
Select Find mixtures by
constituent from the Select query
drop-down list.
Enter at least one search criteria into one of the fields listed in the Query specific fields area (see the screenshot below).
To retrieve Mixture datasets based on their impurities:
Go Home to the Task panel if you are not already there.
Under Mixture , click Update. Click the Query button; a query window opens.
Select Mixture from the
Select query result type
drop-down list.
Select Find mixtures by impurity
from the Select query
drop-down list.

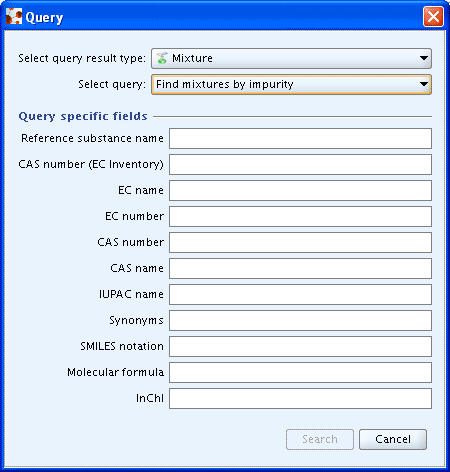

Enter at least one search criteria into one of the fields listed in the Query specific fields area (see below).
To retrieve Mixture datasets based on their related Substance(s):
Go Home to the Task panel if you are not already there.
Under Mixture , click Update. Click the Query button; a query window opens.
Select Mixture from the
Select query result type
drop-down list.
Select Find mixtures by related
substances from the Select query
drop-down
list.

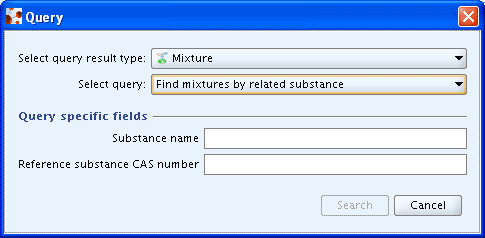

Enter at least one search criteria into one of the fields listed in the Query specific fields area (see the screenshot below).
